Spray Foam Insulation Machine Thermal Insulation Board
Technical specifications
| Type | Insulation Gas Nailer |
| Type of power | piston reciprocating |
| Dimensions | 420mm(L) x 360mm(H) x 120mm (w) |
| Weight | 3.3kg include battery |
| Kinetic Energy | 120J |
| Available Nails | Insulation nails |
| Insulation nail length | 1.18” (30mm) ~ 4.72” (120mm) |
| Steel Nail length | 1.96” (50mm) |
| Shank diameter(steel parts) | Ø.118” (3.0mm) ~ Ø .157” (4.0mm) |
| Head diameter | Ø.276” (7.0mm) ~ Ø .315” (8.0mm) |
| Magazine capacity | 1 nail |
| Cycle Rate | 1 nail / second |
| Fuel Cell | Drive approximately 1000 nails per fuel cell |
| Battery Pack | Li-Ion 7,2V DC |
| Ambient temperature | -5℃-50℃ |
Feature
1. Integrated nail magazine with spring lock for quick and easy loading.
2. Low battery indicator light alerts the user of battery status.
3. Battery with over-discharge protection & over-current protection
4. Dry-Fire lockout prevents accidental dry-fire
5. Over-Molded Grip for comfort and control
Application
Direct installation of thermal insulation to concrete and brick using specialized dowel-mushrooms
without drilling and drilling holes in the wall.

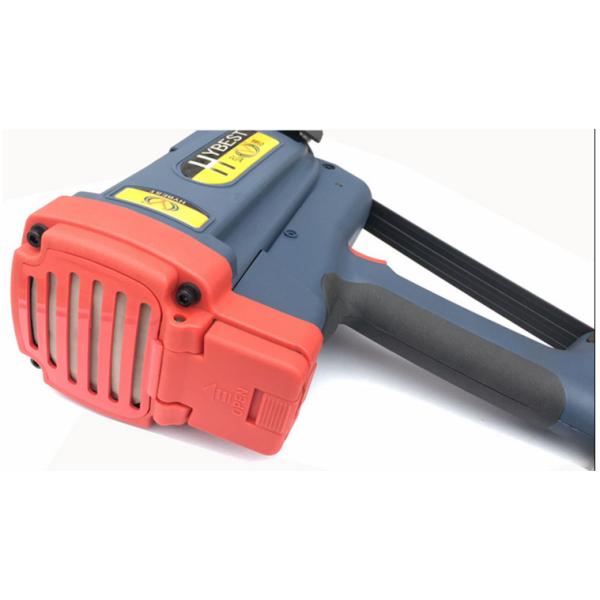

Detailed Picture

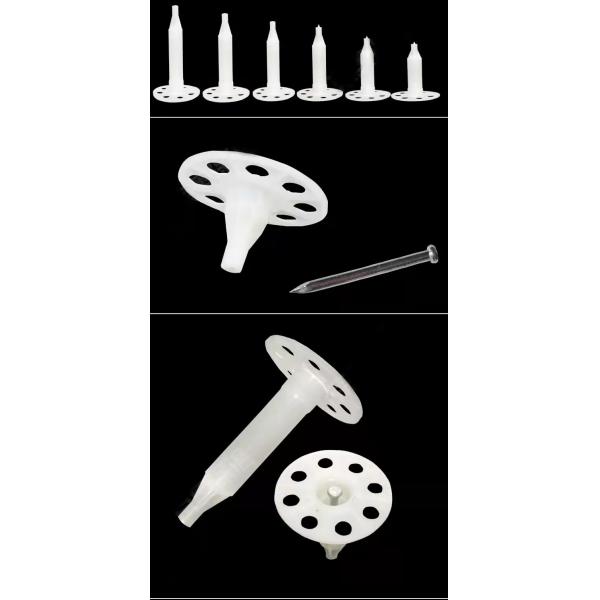

Equipped with fuel cell and nails
